GEKO

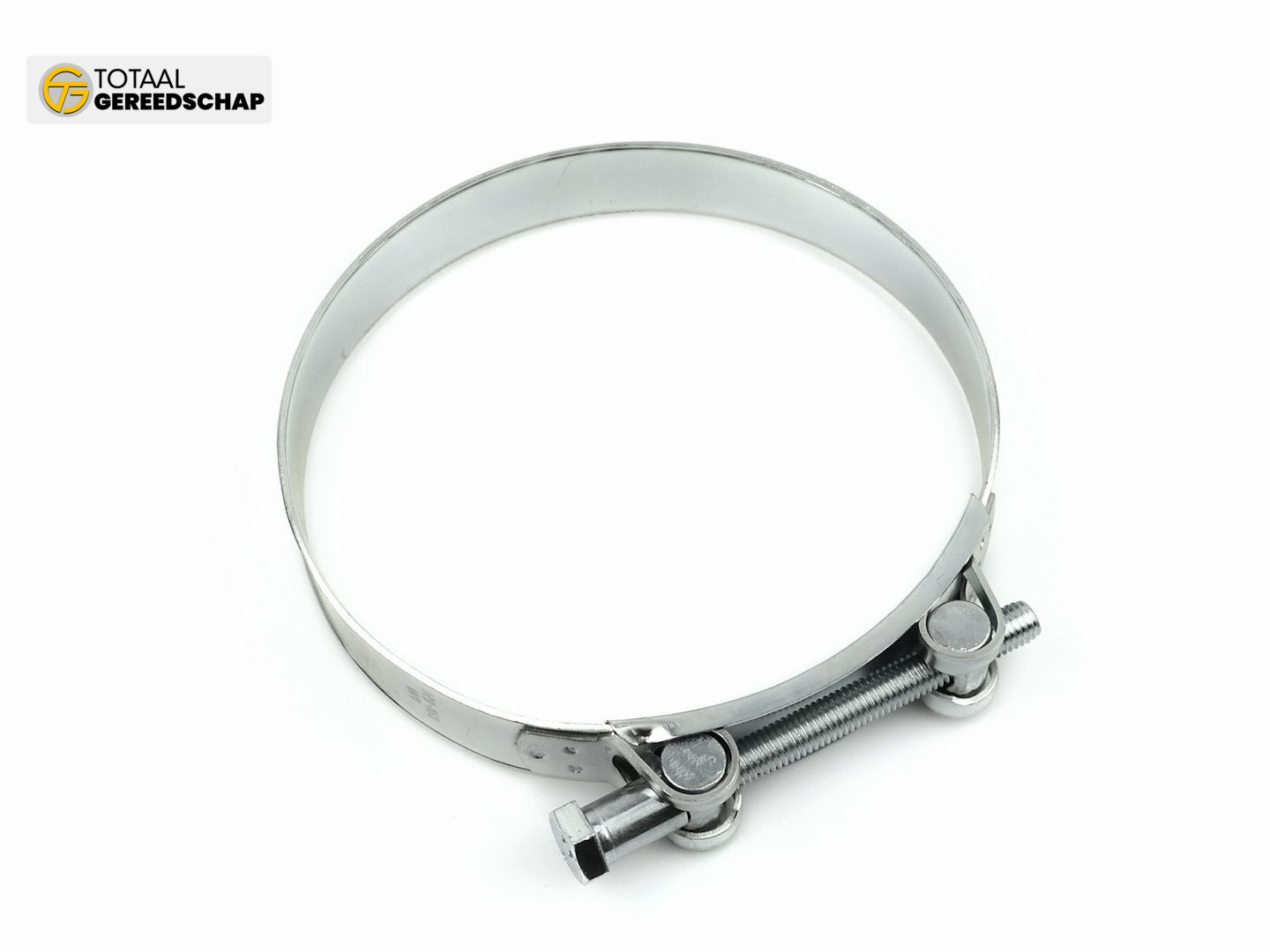

GBS clamp W1 201-213mm

SKU: G17381 Barcode: 5901477165443.0
(0)
€4,68 inc. VAT
In stock
Usually ships within 24 hours

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email +31 614585749

GBS clamp bands made of galvanized steel W1 with a hinged closure designed for making connections on hoses and pipes exposed to heavy loads. The straps are made of steel tape and have curved edges which prevent damage to the hose even with very tight clamping. GBS clamp bands are used for heavy-load connections, hoses with ribbed external surfaces, hoses with thick and strong walls, as well as suction hoses with an internal metal or plastic spiral.

Product characteristics:

  • made of galvanized steel – W1
  • designed to connect hoses and pipes operating under heavy loads
  • curved edges prevent hose damage even with very tight clamping
  • operated with a hexagonal wrench
  • intended for use in non-corrosive environments

Technical data:

Product code Ø - diameter Material A - tape width [mm] B - tape thickness [mm] Quantity per package
G17350 17-19mm W1 18mm 0.6mm 50 pcs.
G17351 19-21mm W1 18mm 0.6mm 50 pcs.
G17352 21-23mm W1 18mm 0.6mm 50 pcs.
G17353 23-25mm W1 18mm 0.6mm 50 pcs.
G17354 26-28mm W1 18mm 0.6mm 50 pcs.
G17355 29-31mm W1 20mm 0.8mm 50 pcs.
G17356 32-35mm W1 20mm 0.8mm 50 pcs.
G17357 36-39mm W1 20mm 0.8mm 50 pcs.
G17358 38-41mm W1 20mm 0.8mm 50 pcs.
G17359 40-43mm W1 20mm 0.8mm 50 pcs.
G17360 44-47mm W1 22mm 1.2mm 50 pcs.
G17361 48-51mm W1 22mm 1.2mm 50 pcs.
G17362 52-55mm W1 22mm 1.2mm 25 pcs.
G17363 56-59mm W1 22mm 1.2mm 25 pcs.
G17364 60-63mm W1 22mm 1.2mm 25 pcs.
G17365 64-67mm W1 22mm 1.2mm 25 pcs.
G17366 68-73mm W1 24mm 1.5mm 25 pcs.
G17367 74-79mm W1 24mm 1.5mm 25 pcs.
G17368 76-80mm W1 24mm 1.5mm 25 pcs.
G17369 80-85mm W1 24mm 1.5mm 25 pcs.
G17370 86-91mm W1 24mm 1.5mm 25 pcs.
G17371 92-97mm W1 24mm 1.5mm 25 pcs.
G17372 98-103mm W1 24mm 1.5mm 25 pcs.
G17373 104-112mm W1 24mm 1.5mm 25 pcs.
G17374 113-121mm W1 24mm 1.5mm 25 pcs.
G17375 122-130mm W1 24mm 1.5mm 25 pcs.
G17376 131-139mm W1 26mm 1.7mm 10 pcs.
G17377 140-148mm W1 26mm 1.7mm 10 pcs.
G17378 149-161mm W1 26mm 1.7mm 10 pcs.
G17379 162-174mm W1 26mm 1.7mm 10 pcs.
G17380 175-187mm W1 26mm 1.7mm 10 pcs.
G17381 201-213mm W1 26mm 1.7mm 10 pcs.
