GEKO

Gear for grinding machine 125/o49xo10x16x37T/o19x8x12T

SKU: G00465 Barcode: 5901477115356.0
(0)
€3,40 inc. VAT
In stock
Usually ships within 24 hours

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email +31 614585749

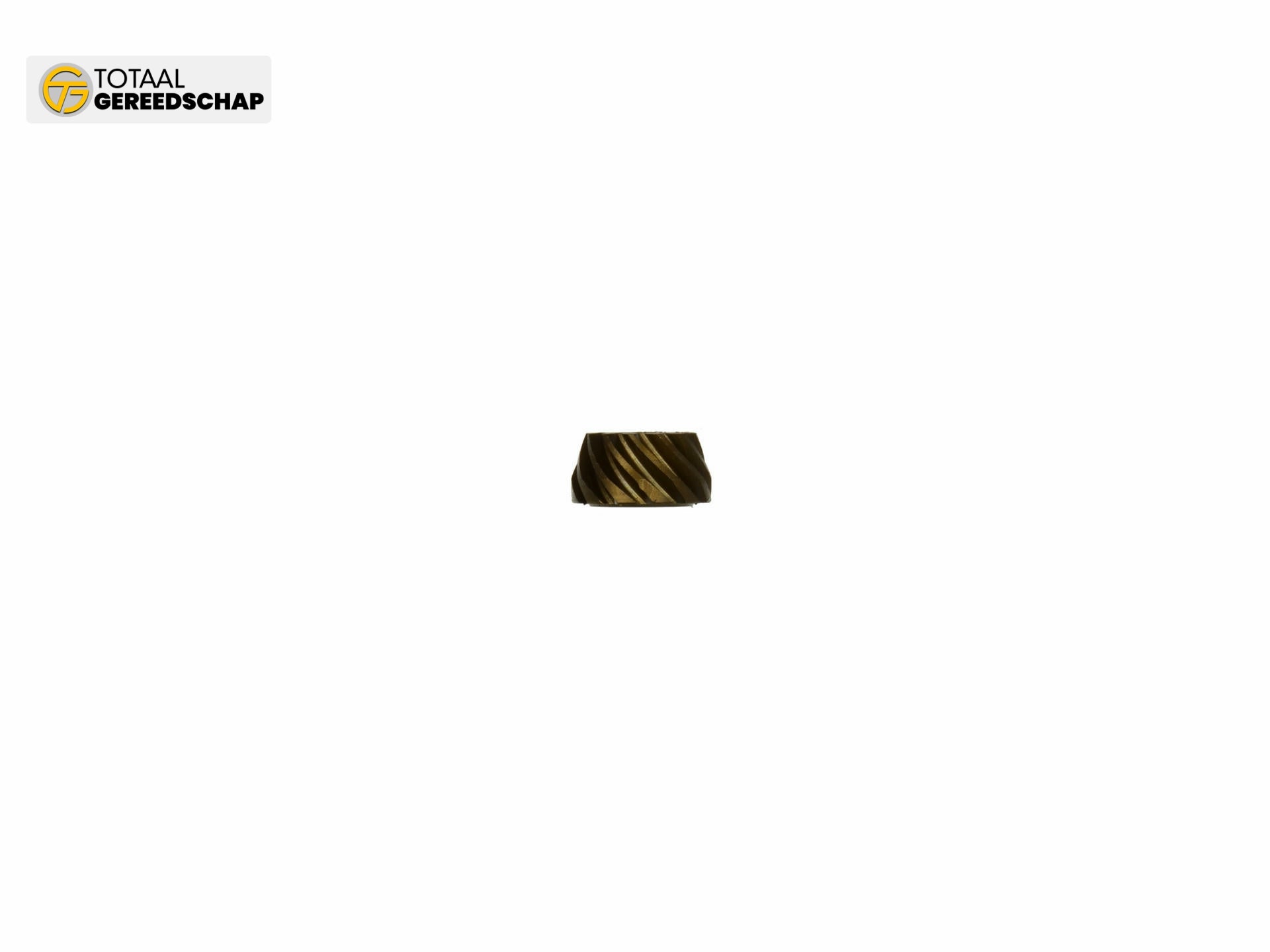

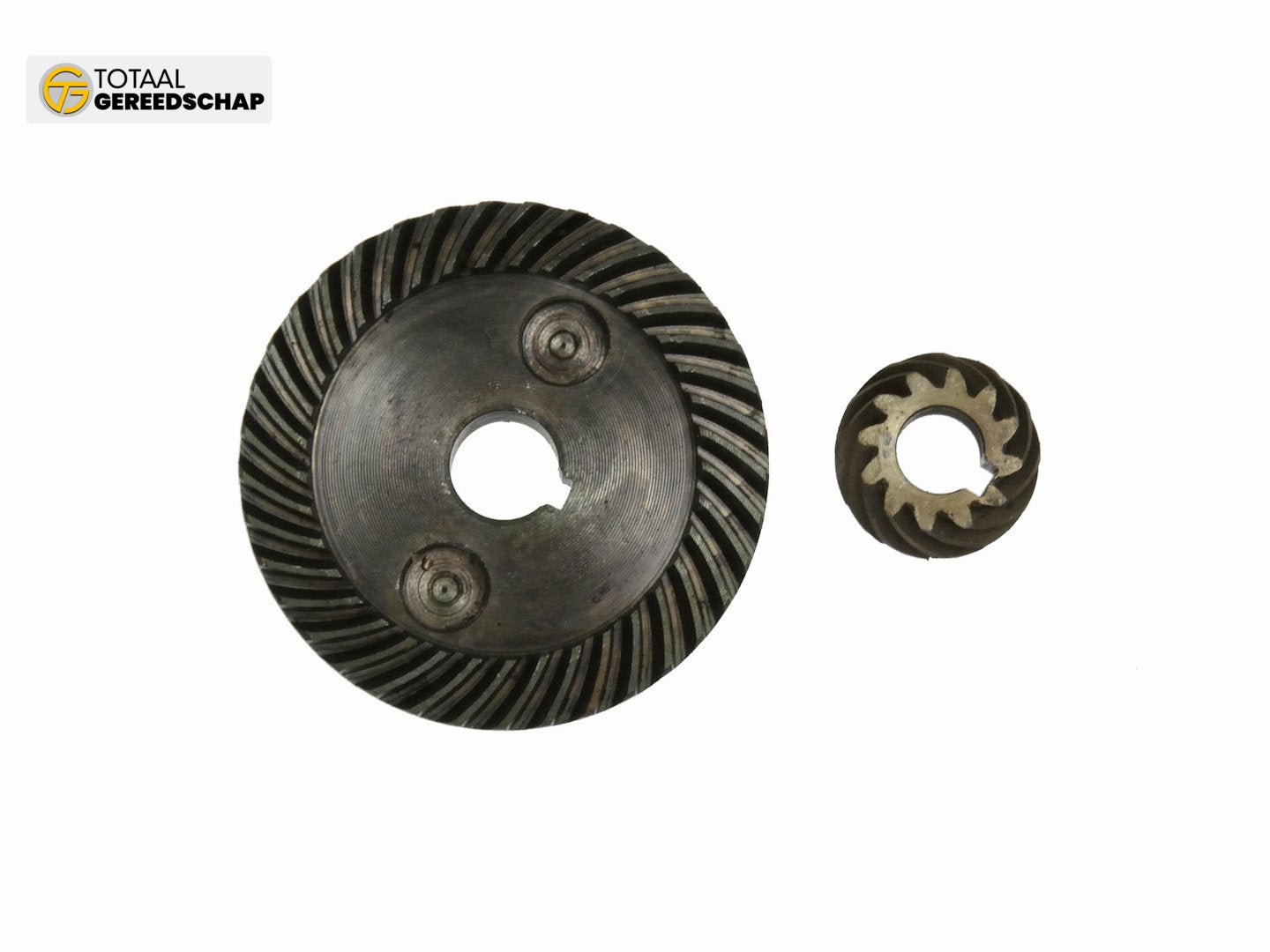

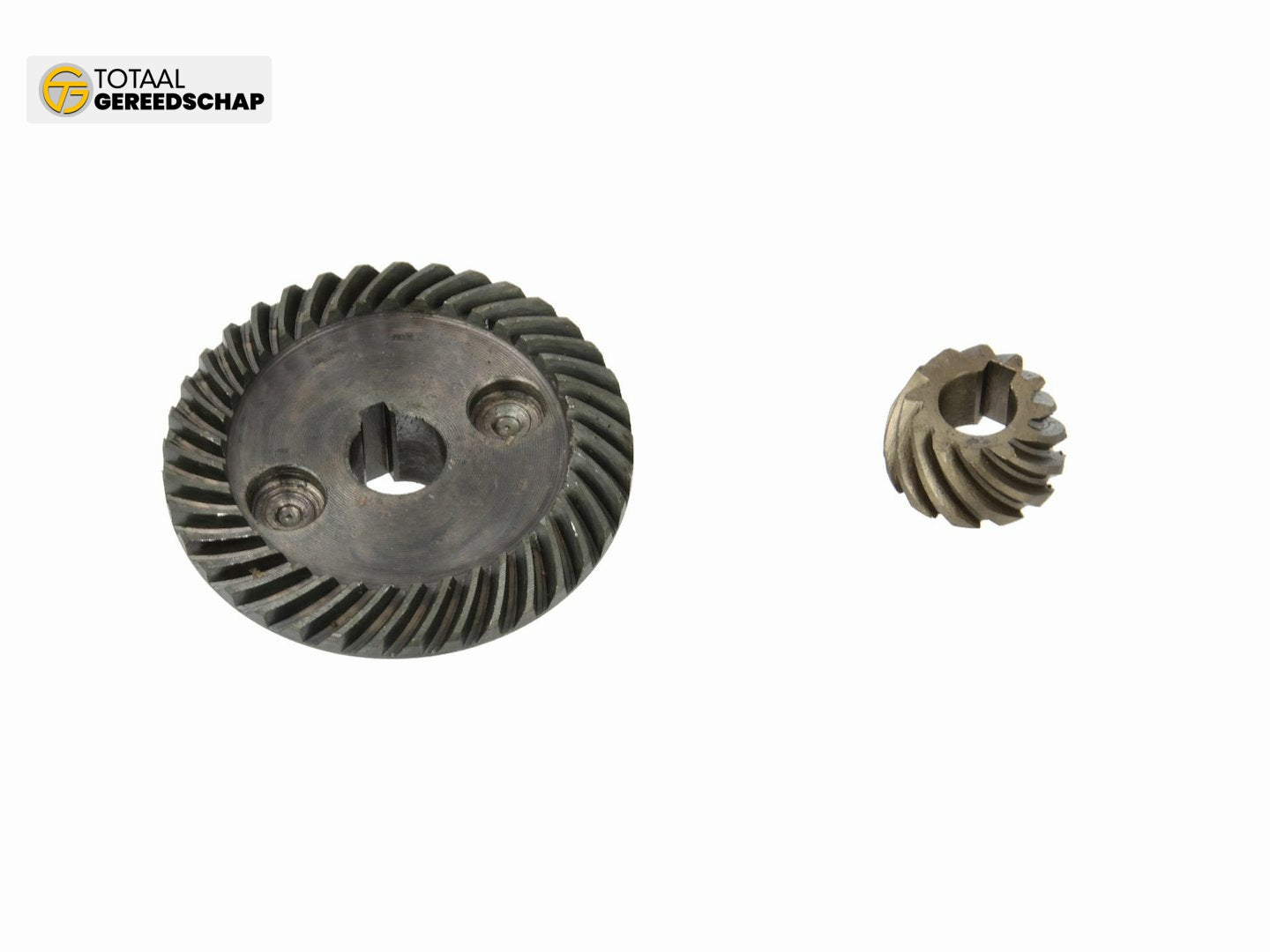

Gear transmission for 125 mm grinder

  • Outer diameter of the large gear - 48.5 mm
  • Hole for the large gear spindle - 10 mm with 3 mm keyway
  • Gear height measured at spindle hole / entire gear - 13/15.5 mm
  • Number of teeth on the large gear - 37
  • Outer diameter of the small gear - 19 mm
  • Small gear rotor shaft hole - 8 mm with 3 mm keyway
  • Total height of the small gear assembly - 10 mm
  • Number of teeth on the small gear - 12
