GEKO

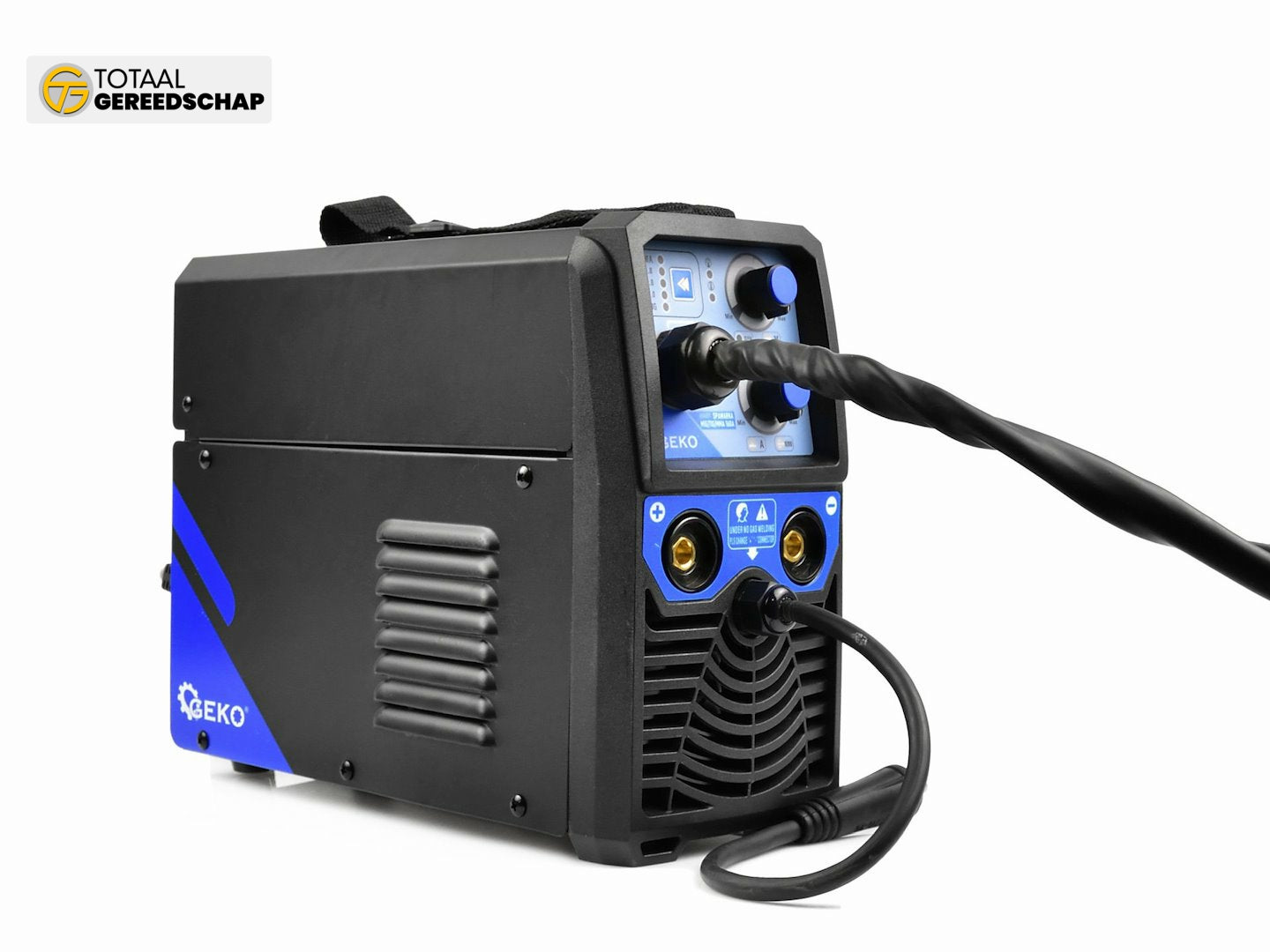

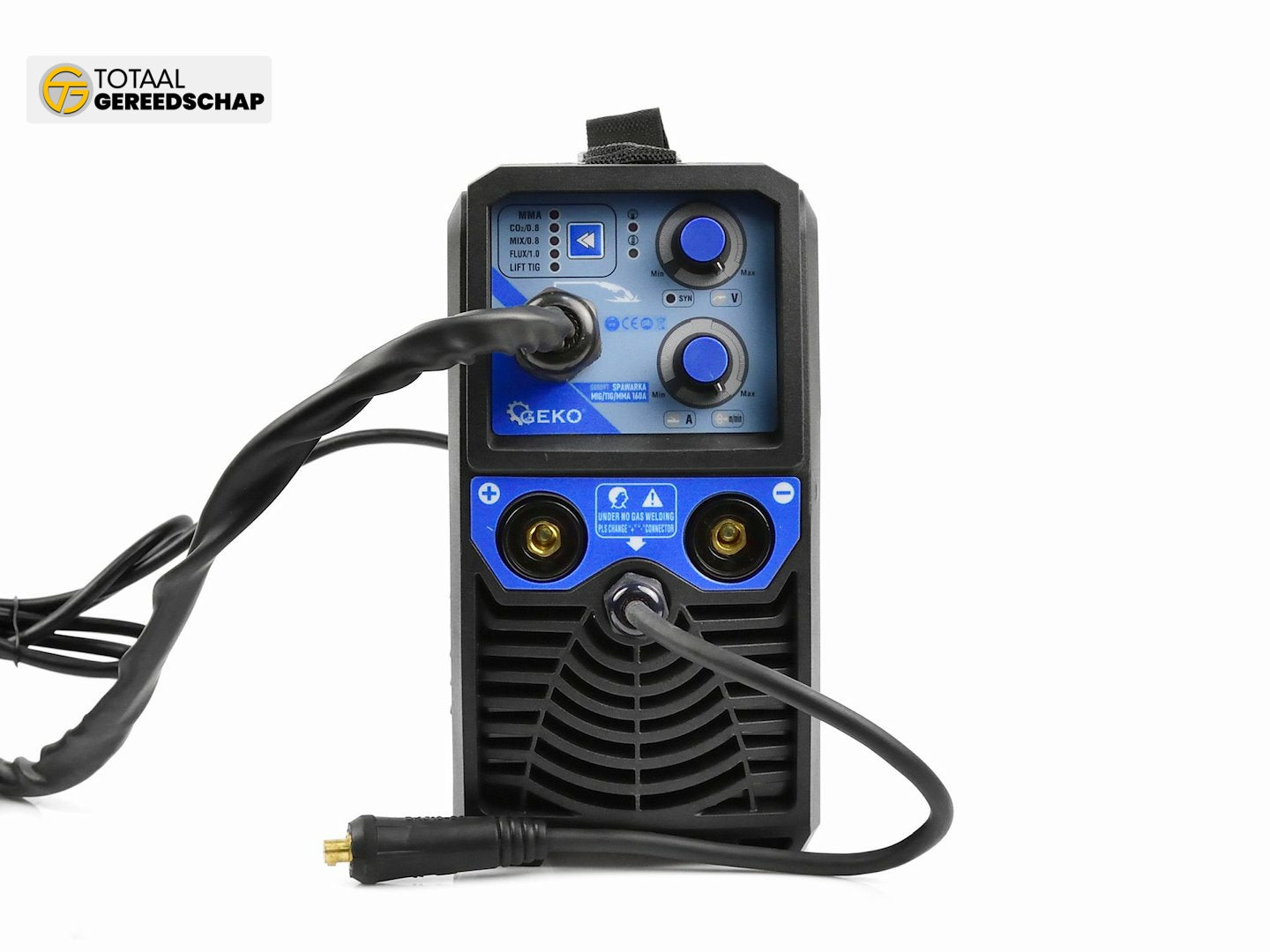

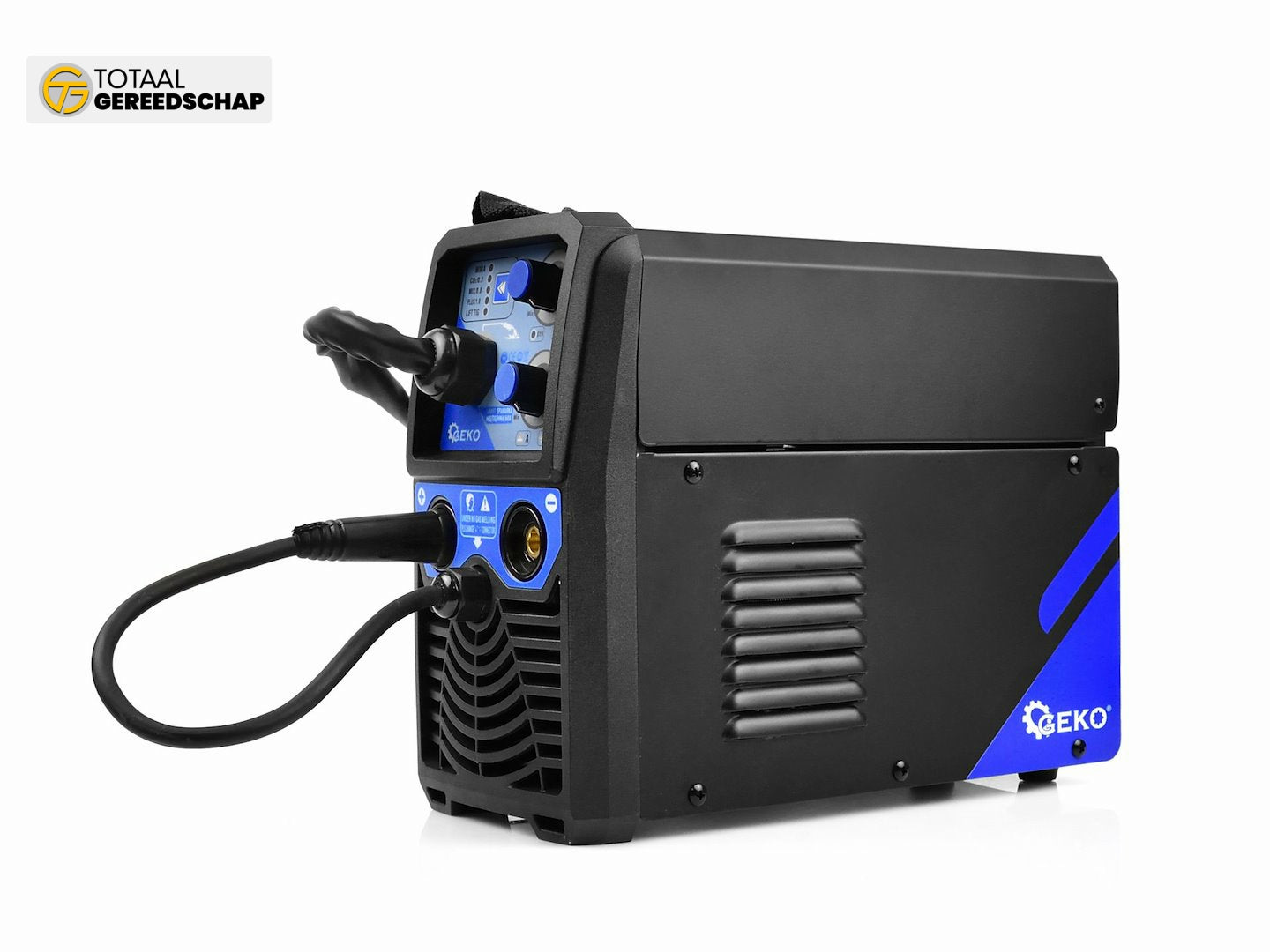

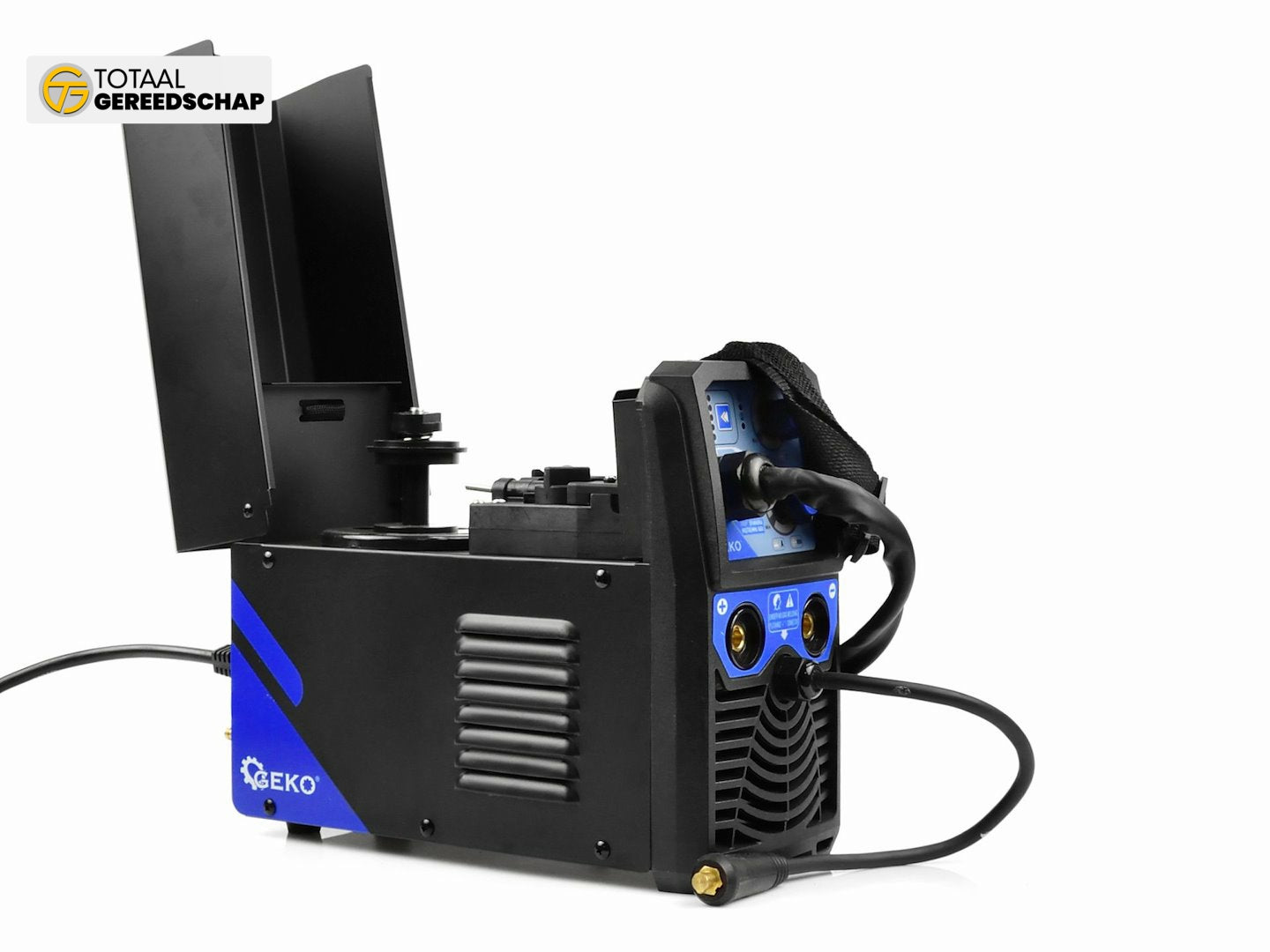

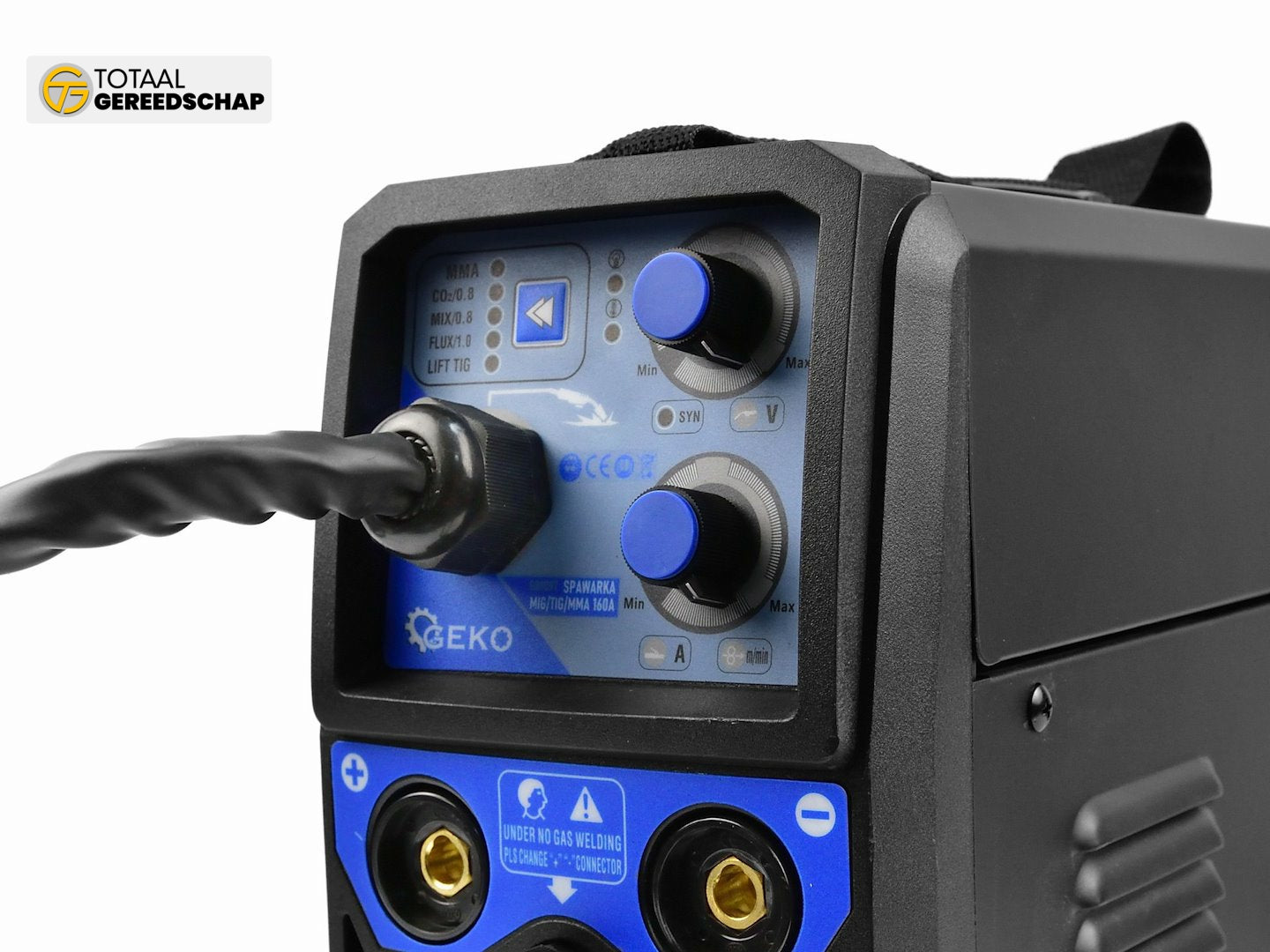

Welding Machine MIG/TIG/MMA 160A

SKU: G80097 Barcode: 5901477169335.0
(0)
€232,96 inc. VAT
In stock
Usually ships within 24 hours

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email +31 614585749

The inverter welder is used for MIG / MAG welding. The welder uses a high power IGBT to transmit frequencies 50 / 60Hz to 20kHz. The advantages of the welding machine include, among others, energy saving and the possibility of automatic correction of voltage pulsations, low sparking, high duty cycle.


Product Features:

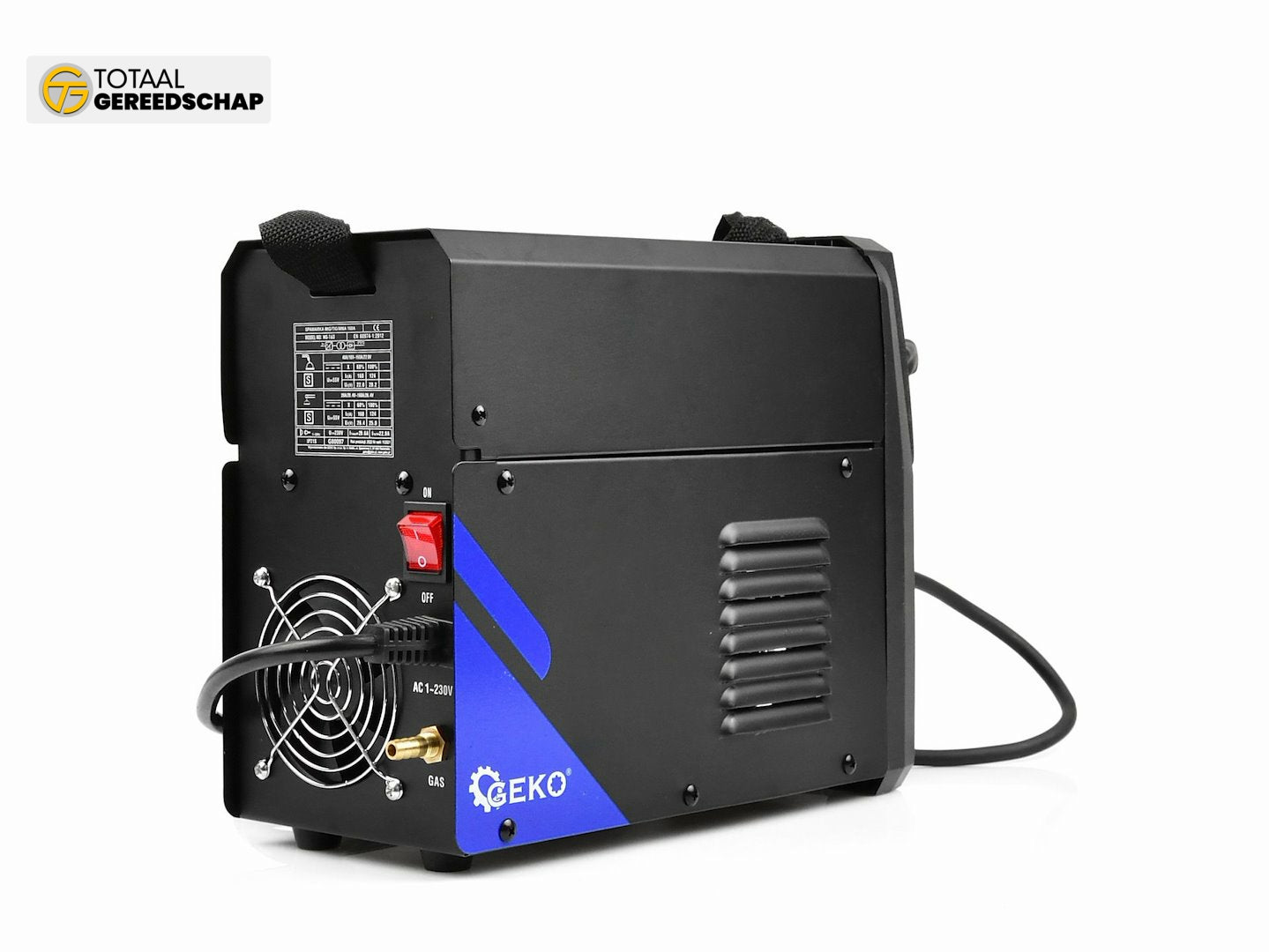

Ergonomic carrying handle
For MIG / MAG welding.
High power IGBT transistor for frequency transmission

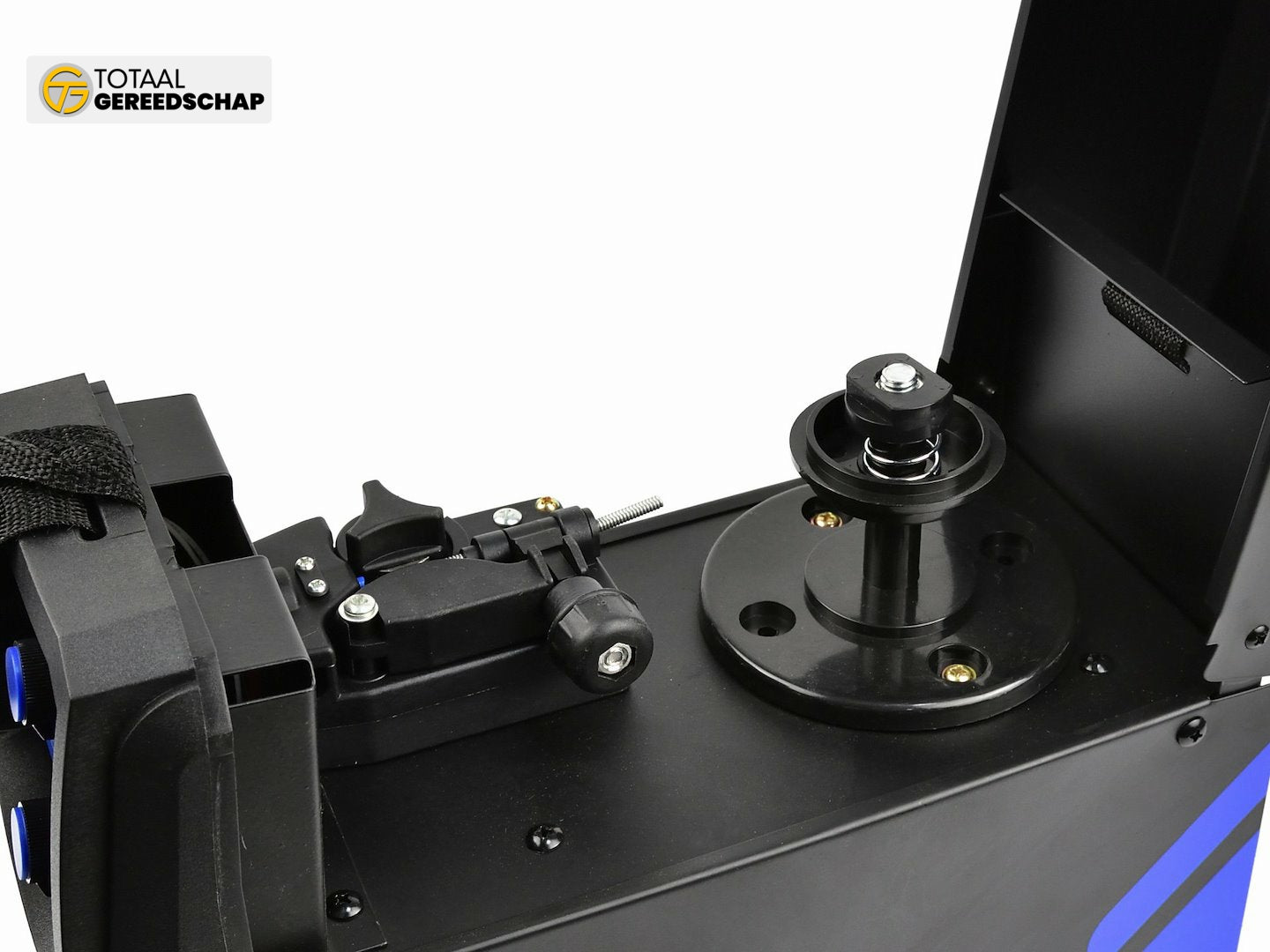

Regular wire feed speed
Quiet operation without electromagnetic noise



Technical data:

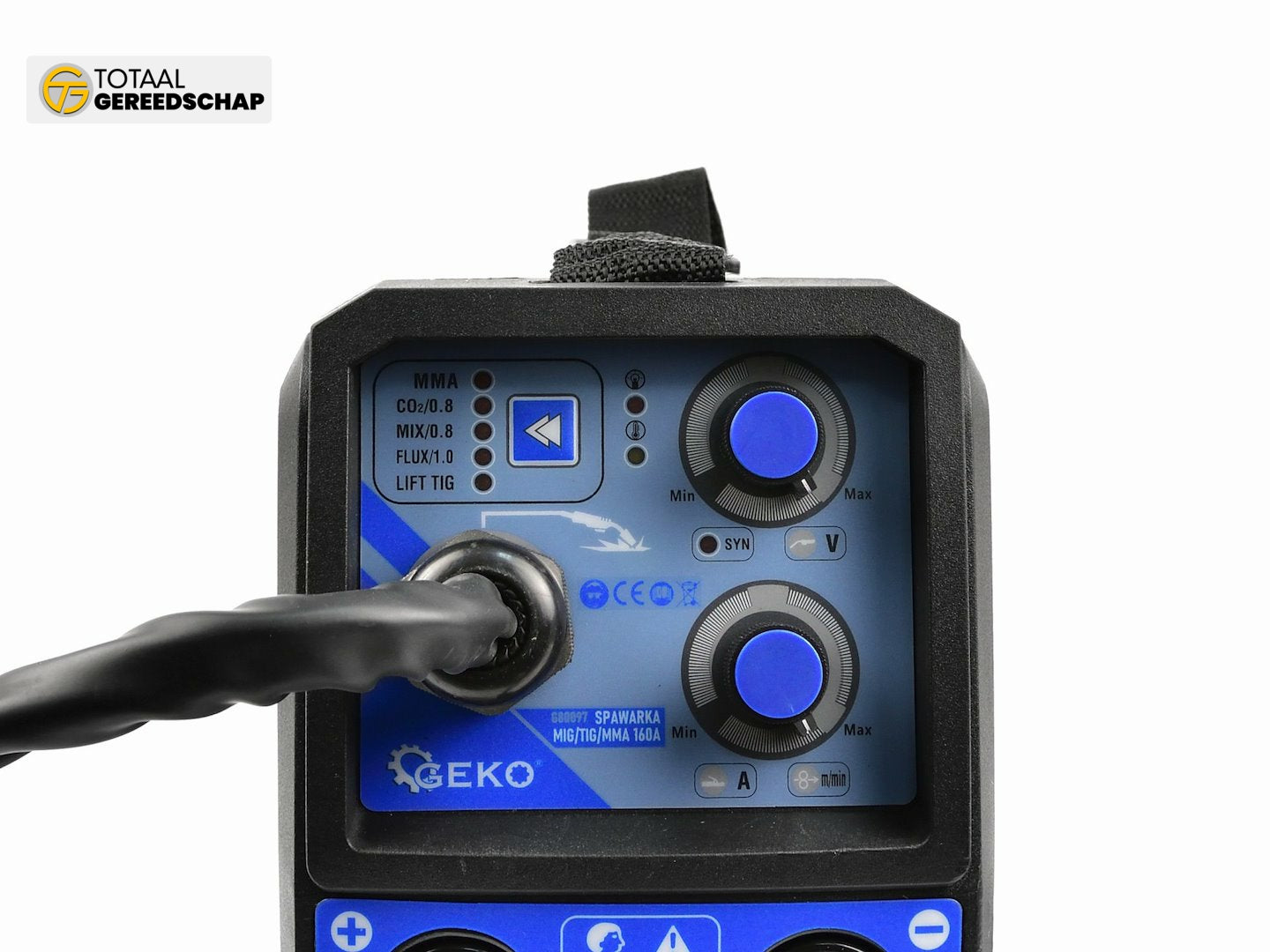

  • Working mode: MIG / TIG / MMA

  • Supply voltage: 230V

  • No-load voltage: 16-22A

  • Frequency: 50Hz

  • Supported wire diameters: 0.6 / 0.8 mm

  • Supported electrode diameters: 2.5 mm - 4 mm

  • Welding methods: MIG / TIG / MMA

  • Rated welding cycle: 60%, low heat emission!

  • Welding current: 30-130 A (MIG), 20-120A (MMA), 10 - 120A (TIG)

  • Wire speed: 3-15 m / min


The composition of the set:


MIG / TIG / MMA welder

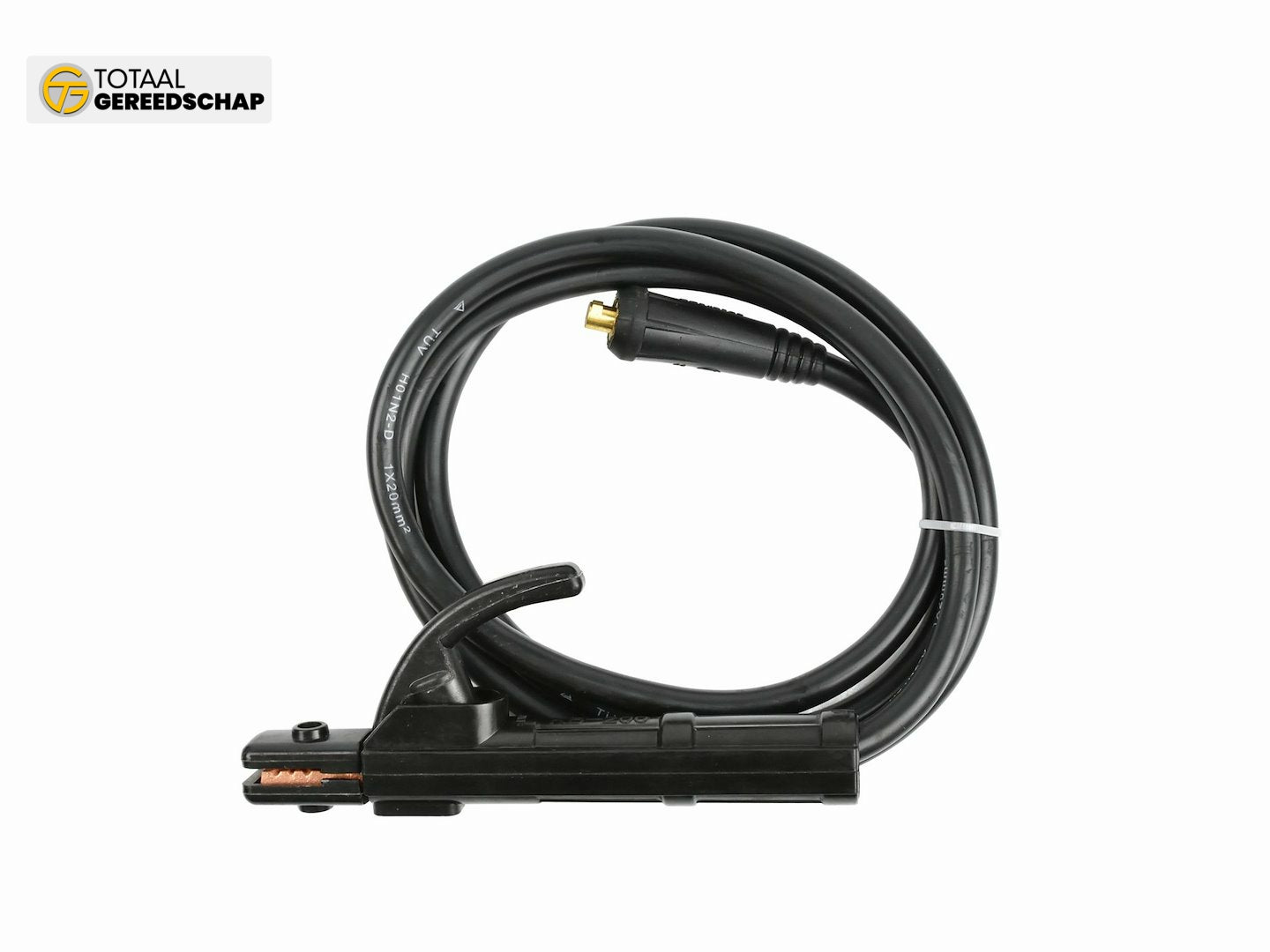

DIN ground cable with clamp


Welding mask


Cleaning brush


Mass welding cable



Technical Data





























Wire Dia. Size 0,6 - 0,8 mm
MMA Electrode Size 1,6 - 4,0 mm
No-load Voltage 55V
I1max 29.6 A
I1eff 22.9 A
Power Factor 0.93

MIG



















MIG Duty Cycle 60% 100%
Current 160 A 124A
Voltage 22.0 V 20.2 V

MMA



















MMA Duty Cycle 60% 100%
Current 160 A 124 A
Voltage 26.4 V 25.0 V
